Elfsheet is a weave by Nadrendion. This tutorial is for adding rows to Elfsheet one at a time. This can be easier than adding entire elfweave chains, especially if you're using a tight AR. I'm assuming that you're starting with a strip of Elfweave and want to add on to it. If you don't have a patch handy, you can use this same method starting off a piece of Half Persian 3-1 Sheet 6, or European 4-1 with a 45° seam.

Aspect Ratio & Ring Sizes
Elfsheet can be made with rings around 4.2 and up. 20awg 1/8", 18swg 3/16" and 16swg 1/4" rings make ver' nice Elfsheet. Bumping up the inner diameter will make it easier to weave.

Metric sizes - approximately 0.8mm wire/3mm ID; 1.2mm wire/4.8mm ID; 1.5mm wire/6.4mm ID.

Tutorial Color Scheme
Old rings are steel, new rings are gold.

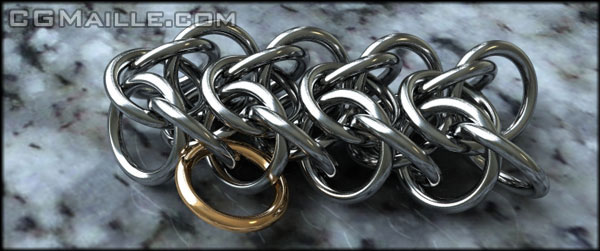

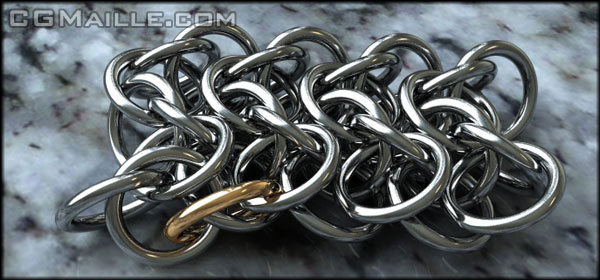

Step 1:Connect a ring through two bottom two edge rings.

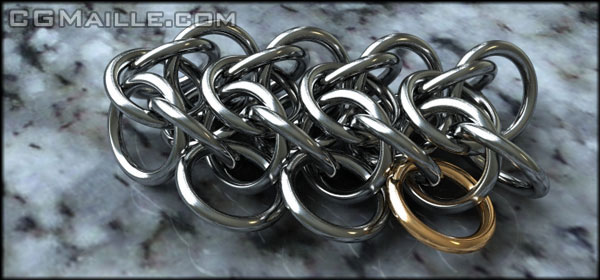

Step 2: Continue all the way across.

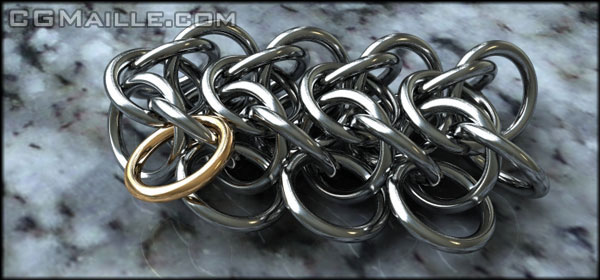

Step 3: Do the same on the top, add a ring to two top edge rings.



Step 4: Continue all the way across.

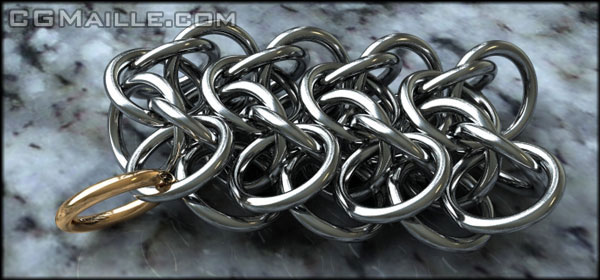

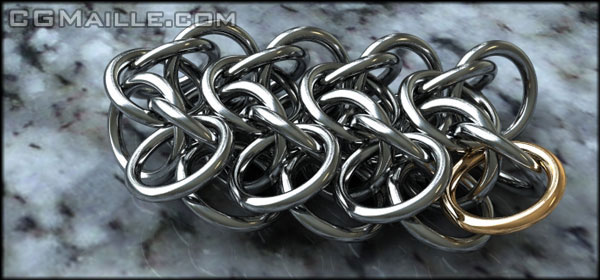

Step 5: Connect a ring to the top edge ring.

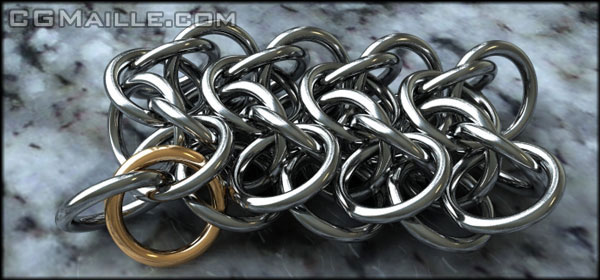

Step 6: Connect a ring 'up' through the ring you just added, and 'down' through the top and bottom edge rings.



Step 7: Add a ring 'down' through the ring added in step 6, and 'up' through the bottom edge ring and the second top ring.

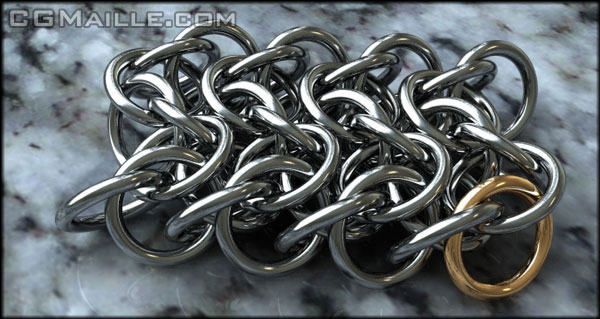

Step 8: Repeat steps 6 and 7 to finish the side.

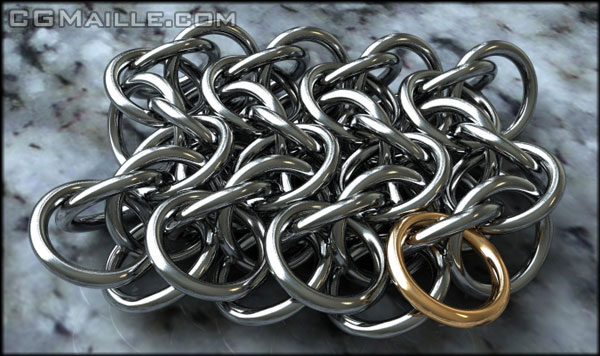

Step 9: Repeat steps 1 - 4 to start a new row.

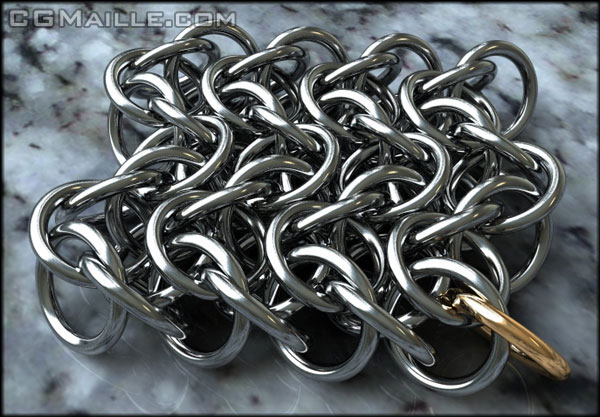

Step 10: Repeat steps 5 - 8 to complete the new row.
