Author's Note
I wanted to contribute my tutorials to Chainmaillers.com to help ensure that the entire chainmaille community has access to them. The tutorials are presented here with the same images and text from my old site CGMaille. I hope they continue to help inspire you to learn and create many amazing pieces!
-Phong


Weave Background

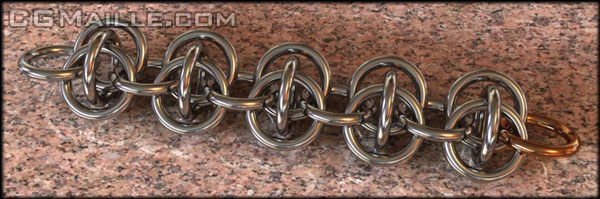

Rhinos Snorting Drano is a simple twist on European 4-1. Fortunately the construction of Rhinos Snorting Drano is not nearly as convoluted as the name. Note: If you add 2 rings in Steps 2 & 4 instead of just one, that weave is called Barrels.

Aspect Ratio & Ring Sizes
Rhinos Snorting Drano can be made with relatively small rings. I haven't made any myself, but it seems like pretty much any common ring size should work.

Tutorial Color Scheme
New rings are bronze, old rings are steel.


Step 1: Put two preclosed rings on an open ring. Close that ring and arrange the preclosed rings so they're laying next to each other and form an () eye.



Step 2: Pass an open ring around the eye.



Step 3: Preclose 2 more rings and put them on an open ring. Pass the open ring down through the eye on the other side of the ring added in the previous step. You should start to recognize a strip of E4-1 forming.



Step 4: Pass an open ring around the eye of the preclosed rings from the previous step.



Step 5: Repeat Steps 3 and 4 until the chain is the desired length. Toss on an extra ring through the last eye to finish off the chain.
