Photo Tutorial Scale Bib Necklace

Author's Note
Our projects were very popular during the lifetime of our business and we wanted to ensure they continued to provide inspiration for chain maillers whatever their experience. It's a pleasure to see they will live on with Chainmaillers.com
-Sarah Austin

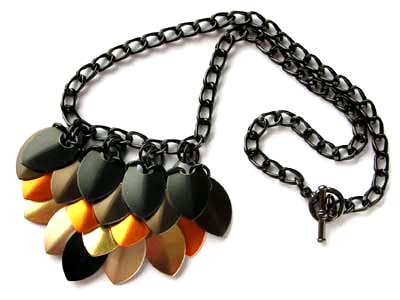

Scale Bib Necklace

Learn the technique for making a scale sheet with this easy-to-make bib necklace.


Materials

You will need:
  • 38 black saw cut anodised aluminium jump rings, ID 5mm, WD 1.2mm
  • 19 anodised aluminium small scales – 13.9 x 22.1mm - 5 black, 5 bronze, 4 orange, 3 gold, 2 light gold
  • 40cm black aluminium curb chain, 5 x 9mm links
  • black finish Tierracast medium wrapped toggle, 12 x 16mm
Tools:
  • two pairs of smooth jawed chain nose or flat nose pliers
Note: You will be working on the reverse side of the bib necklace.

Instructions

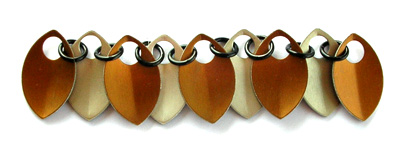

  1. Alternating the colours, link five bronze and four black scales with black jump rings. The black scales are silver coloured on the reverse (concave) side. With the scales ridge-side down, arrange them so that the bronze scales sit on top of the black scales.

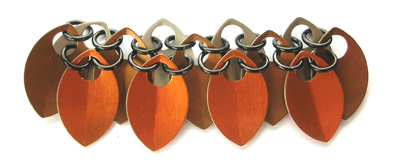

  2. Join the left-hand side of an orange scale to the right-hand side of the first bronze scale. Link the jump ring beneath the ring added in step one.


  3. With a second ring, connect the other side of the orange scale to the left-hand side of the second bronze scale, linking the ring as in step 2. Add three more orange scales.

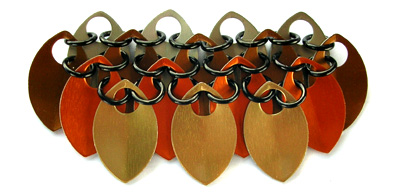

  4. Repeat step 2 and add three gold scales.

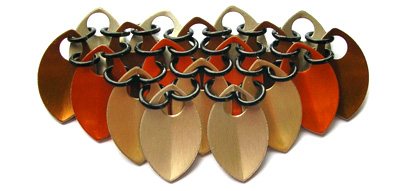

  5. Repeat step 2 and add two light gold scales.

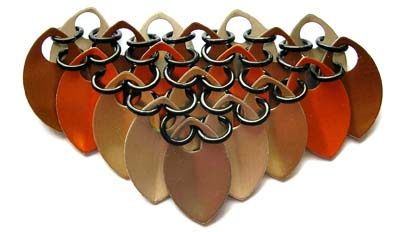

  6. Repeat step 2 and add one black scale.

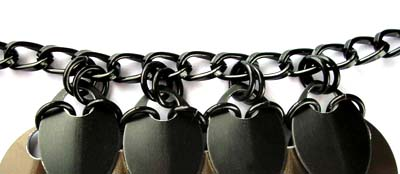

  7. Position your chain so that the finished scale bib is central. Link one ring through a middle black scale and a corresponding chain link. Repeat with the other middle scale. Link a second ring through each scale and chain link. Using two rings for each scale, link the outer black scales to the chain.

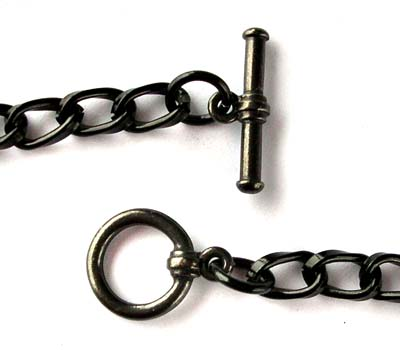

  8. Attach your toggle ring and bar to the ends of the chain using one jump ring.

If you found this tutorial helpful: Please let other users know, leave a rating.

©2021 Sarah Austin. All rights reserved.
