Photo Tutorial Byzantine Cuff

Author's Note
Our projects were very popular during the lifetime of our business and we wanted to ensure they continued to provide inspiration for chain maillers whatever their experience. It's a pleasure to see they will live on with Chainmaillers.com
-Sarah Austin

Byzantine Cuff

Join two lengths of Byzantine weave to create this eye-catching cuff.



Materials

For 18cm cuff, you will need:
  • 296 bright aluminium jump rings, ID 4.2mm, WD 1.29mm - (A)
  • 12 anodised aluminium jump rings, ID 9.9mm, WD 1.64mm - (B). We have used pink, violet and purple.
  • 1 x 5cm eyepin and headpin or two lengths of wire
Tools:
  • two pairs of smooth faced chain nose, bent nose or flat nose pliers


Instructions

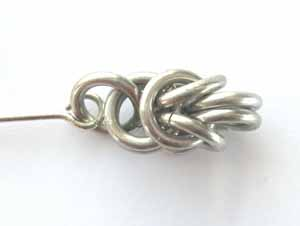

  1. Link two closed bright aluminium jump rings (A) and the eyepin with one jump ring A.

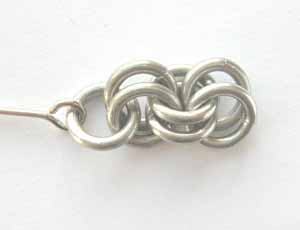

  2. Add two further pairs of bright aluminium rings.

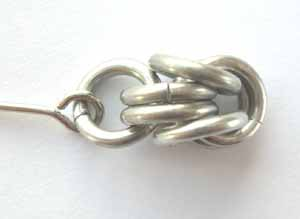

  3. Fold back the last pair of jump rings added in step 2.

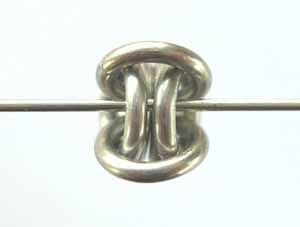

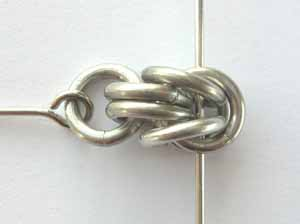

  4. Place your headpin between the first pair of rings added in step 2 and through the two rings you have folded back in step 3. The headpin will help you place the next pair of rings.

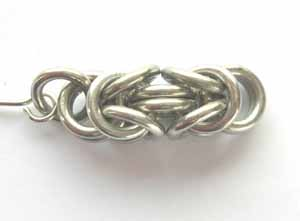

  5. Following the path of the headpin, link one jump ring (A). Add a second jump ring.


  6. Repeat steps 2-5 until your chain is the desired length, ending with step 5. Make a second chain of equal length.


  7. Remove the eyepin and add a second jump ring (A) so that the chain ends with a pair of rings. With one ring (A), attach these last two rings to one loop of the clasp. Repeat with the second chain.

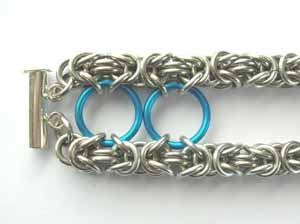

  8. Your chain is made up of Byzantine units. Referring to the picture, weave one coloured jump ring (B) through the top and then the bottom pair of diagonal rings within one Byzantine unit.


  9. Continue to join the top and bottom Byzantine units with the coloured rings until you reach the end of your chains. Link both chains to the other half of the clasp.

Variations


  • Use a single colour for the large central rings.
  • Try using coloured rings (ID 4mm, WD 1.29mm) for the small rings (A).
  • Use coloured rings (ID 4mm, WD 1.29mm) for the jump rings (A) at step 5.
  • Use colour schemes such as copper and black or silver, red, orange and gold.


If you found this tutorial helpful: Please let other users know, leave a rating.

©2021 Sarah Austin. All rights reserved.
