Photo Tutorial Stretchy Box Weave Bangle

Author's Note
Our projects were very popular during the lifetime of our business and we wanted to ensure they continued to provide inspiration for chain maillers whatever their experience. It's a pleasure to see they will live on with Chainmaillers.com
-Sarah Austin

Stretchy Box Weave Bangle

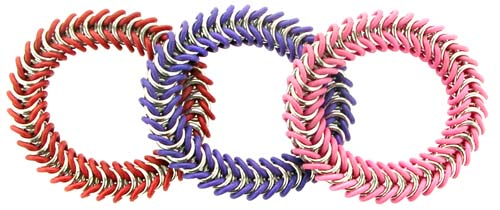

This stretchy box weave bangle is ideal jewellery for men and women and can be made in a wide variety of colourways.
Box weave is an easy weave closely related to the Byzantine weave. These instructions show you how to speed weave and join box chain.



Materials

For a 16cm bangle, you will need:
  • 72 silver anodised aluminium saw cut jump rings, ID 6.8mm, WD 1.6mm
  • 72 purple EPDM rubber o-rings, ID 6.4mm, WD 1.63mm
  • paperclip and one headpin or eyepin or piece of wire
Tools:
  • two pairs of smooth jawed chain nose or flat nose pliers


Instructions

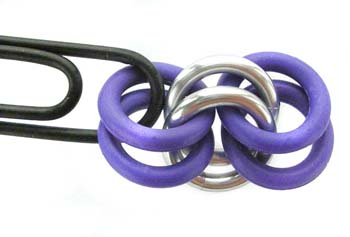

  1. Link two silver aluminium jump rings through four purple o-rings and close. Attach the paperclip to two of the o-rings and lay out the rings as shown.

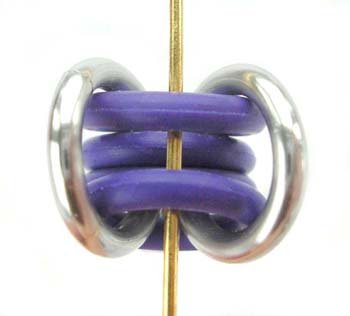

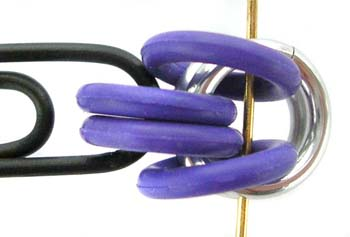

  2. Fold back the two o-rings not attached to the paperclip. Place your headpin between the two silver rings and through the two o-rings you have folded back.


    The silver rings added in step 3 follow the path of the headpin.

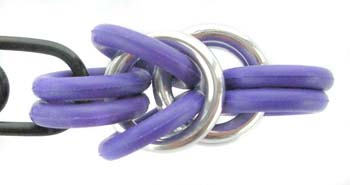

  3. Following the path of the headpin, link two silver rings. Add 2 o-rings before closing each silver ring.

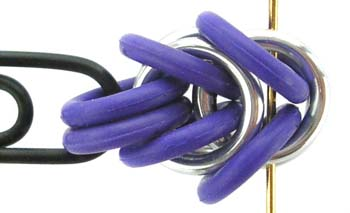

  4. Fold back the two o-rings just added. Place the headpin between the two silver rings added in the previous step and through the two o-rings you have folded back.


  5. Following the path of the headpin, link two silver rings, adding two o-rings before closing.


  6. Repeat steps 4-5 until the bangle is the correct size for your wrist.

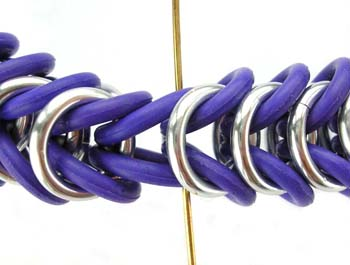

  7. Remove the paperclip from the start of the chain. Open the pair of o-rings that were attached to the paperclip, as if they are a pair of open jaws, and bring the chain around in a circle. Fold back the last pair of o-rings added in step 6 and bring this end of the chain around to meet the jaws of the other pair of o-rings. In the picture, the jaws are on the left and the folded back o-rings are on the right. Fix the jaws onto the folded back rings using the headpin.

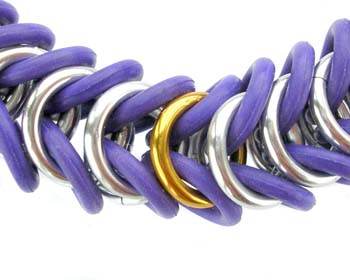

  8. Following the path of the headpin, link one silver ring (shown as gold in the picture). Turn the bangle over and link a second silver ring on the opposite side. Your bangle is now complete.

Variations

  • Use different coloured o-rings and matching anodised aluminium jump rings for blocks of colours.
  • Use only metal jump rings and make a chain, using a clasp to fasten. Jump rings sizes for box chain are:
    • ID 6.8mm, WD 1.6mm for a chunky chain
    • ID 5mm, WD 1.29mm for a medium chain
    • ID 4.3mm, WD 1.00mm for a finer chain
If you found this tutorial helpful: Please let other users know, leave a rating.

©2021 Sarah Austin. All rights reserved.
